Chequered Sheet

Discover the strength and durability of our Chequered Sheet, a flagship solution trusted by countless manufacturers, engineering firms, fabricators, and resellers across India for over 41 years. Designed with precision and offered in the trending Chequered Sheet (Chq 4mm) and Chequered Sheet Plate (Chq 6mm) variants, our products set the benchmark for outstanding quality and reliability. As one of the most customizable options available on the market, these sheets are tailored to suit a spectrum of applications, ensuring an unparalleled deal for every project requirement. With an incomparable anti-slip pattern, remarkable load-bearing capacity, exceptional resistance to abrasion, easy fabrication, and flawless finishing, our Chequered Sheets deliver both safety and style. Their adaptability cements their presence in industrial, commercial, and architectural sectors seeking only the very best. Supplied with unmatched efficiency throughout All India, we stand as your trusted supplier and trader, guaranteeing supply capability and product excellence that few can rival. Choose us for chequered sheets that exemplify the ultimate blend of innovation, value, and long-lasting performance.

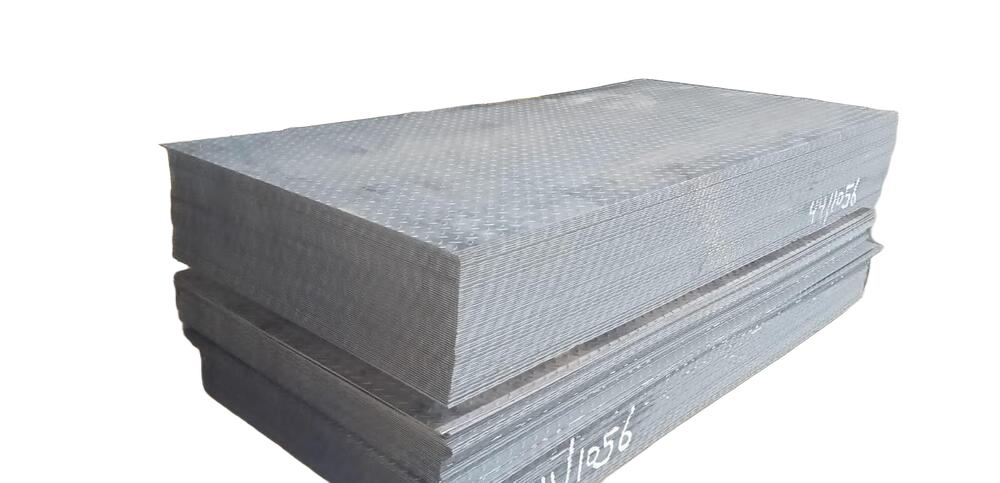

Chequered Sheet (Chq 4mm)

MOQ : 100 Kilograms

  • Application
  • Other, Industrial Flooring, Stairways, Walkways, Ramps, Loading Bays
  • Coating Type
  • Uncoated (can be painted or galvanized)
  • Color
  • Grey
  • Composition
  • Carbon Steel (Fe, C, Mn, Si)
  • Corrosion Resistant
  • Moderate, requires coating for high resistance
  • Dimension (L*W*H)
  • 1250 mm x 2500 mm x 4 mm
  • Finish Type
  • Mill Finish
  • Grade
  • IS 2062, ASTM A36 (typical)
  • Hardness
  • 125-180 BHN
  • Heat Resistance
  • Yes
  • Material Composition %
  • Fe > 98%, C < 0.25%, Mn 0.6-1.2%, Si < 0.4%
  • Material Grade
  • IS 2062 E250
  • Product Form
  • Sheet
  • Product Name
  • Other, Chequered Sheet (Chq 4mm)
  • Recyclable
  • Yes
  • Shape
  • Other, Rectangular Sheet
  • Size
  • 1250 mm x 2500 mm
  • Steel Product Type
  • Other, Chequered Plate / Sheet
  • Steel Standard
  • Other, IS 3502, IS 2062
  • Steel Type
  • Mild Steel
  • Surface
  • Chequered/Embossed Pattern
  • Tensile Strength
  • 410 to 560 MPa
  • Thickness
  • 4 mm
  • Usage
  • Slip-resistant surfaces in industrial and construction areas
  • Weight
  • ~98 kg (Approximate for standard sheet size)

Chequered Sheet Plate (Chq 6mm)

MOQ : 100 Kilograms

  • Application
  • Other, Flooring, ramps, walkways, industrial platforms, staircases, truck beds
  • Coating Type
  • Optional (available with or without primer/oil coated)
  • Color
  • Metallic Grey
  • Composition
  • Low carbon steel
  • Corrosion Resistant
  • Yes (with protective coating or primer)
  • Diameter
  • N/A (sheet form)
  • Dimension (L*W*H)
  • Customized (Standard: 2500 mm x 1250 mm x 6 mm)
  • Finish Type
  • Mill Finish, Anti-skid
  • Grade
  • IS 2062, ASTM A36
  • Hardness
  • 150 - 200 HB
  • Heat Resistance
  • Yes
  • Material Composition %
  • Carbon max 0.23%, Manganese max 1.5%, Sulphur max 0.05%, Phosphorus max 0.05%
  • Material Grade
  • IS 2062 E250
  • Product Form
  • Hot Rolled Plate
  • Product Name
  • Other, Chequered Sheet Plate (Chq 6mm)
  • Recyclable
  • Yes
  • Shape
  • Other, Rectangular
  • Size
  • Customized, standard size 2500 x 1250 mm
  • Steel Product Type
  • Other, Sheet Plate
  • Steel Standard
  • Other, IS 3502 / IS 2062
  • Steel Type
  • Mild Steel
  • Surface
  • Chequered / Anti-skid
  • Tensile Strength
  • 410 - 560 MPa
  • Thickness
  • 6 mm
  • Usage
  • Industrial, Construction, Automobile
  • Weight
  • Approx. 141.3 kg per sheet (for 6mm thickness, standard size)
